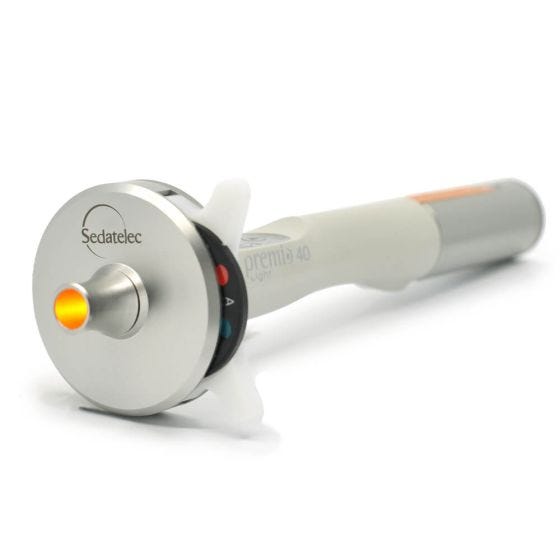

Sedatelec Premio 40 Medical Examination Light
$2,195.00
In stock
SKU
Prem40
The Premio 40 Medical Examination Light from Sedatelec provides high precision color stimulation and detection. This excellent, easy-to-use, wireless diagnostic tool has an ergonomical design and is ideal for auriculomedicine, photonic medicine, and chromotherapy. Includes case, battery, USB charger, support disc, and 1 Ø2 mm and 1 Ø5 cm
nozzle.
Features:
• Adjustable intensity, the lower (detection) on 4 levels and the higher (stimulation) on 6 levels
• Selection of frequencies from A to G and L frequency, in basic frequencies with the possibility to use higher harmonics.
• Variation of frequencies from -30% to +30% in 5% intervals.
• Automatic scanning function for all the frequencies and all the percentages
• Laterality test with the beating function (BF, HF, HF + BF)
Warranty: 2 years
Download an informative brochure for the Sedatelec Premio 40 Medical Examination Light.
Features:
• Adjustable intensity, the lower (detection) on 4 levels and the higher (stimulation) on 6 levels
• Selection of frequencies from A to G and L frequency, in basic frequencies with the possibility to use higher harmonics.
• Variation of frequencies from -30% to +30% in 5% intervals.
• Automatic scanning function for all the frequencies and all the percentages
• Laterality test with the beating function (BF, HF, HF + BF)
Warranty: 2 years
Download an informative brochure for the Sedatelec Premio 40 Medical Examination Light.
Why are the keyboard LEDs blinking?
This is set-up mode where you select the detection light intensity. Press "F" or "%" to choose between 4 different intensity levels. To set your choice or switch to detection mode press the on/off button.
Why is the emitted light blinking?
This is how the fundamental Nogier frequencies (2.28, 4.56 Hz, etc..) appear to the eye. To apply the higher harmonic frequencies (292, 584 Hz, etc..) press "F" for 3 seconds; these frequencies will not appear to blink.
What is the battery life and charging time?
The supplied rechargeable battery lasts 3-5 hours on average, depending on the intensity and frequency selected and takes up to 3 hours for a full charge.
Why are two percentages showing on the keyboard?
The percentage variation is 5%. If two numbers are displayed it means that you are between them. For example, if 10% and 20% are displaying you are at 15%.
Can I use the device with my old Sedatelec filters?
Yes, all Sedatelec filters are compatible with the Premio 40.
Which are the different Premio 40 modes?
• Mode 1 GIR: Use the Nogier frequencies with -30% to +30% variations
• Mode 2 DB: Check laterality with BF (3.79 Hz) and HF (8.74 Hz) frequencies
• Mode 3 Continuous: Stimulate with continuous light from 780 to 51,500 Lux
White or colored light may be used in any mode with Sedatelec filters or discs.
How do you know which mode you are in and how do you switch between them?
Mode 1: One frequency and one percentage are displaying.
Mode 2: BF and/or HF are displaying.
Mode 3: G, L, and +30% are displaying.
A brief click of the arrow button changes between modes 1 and 3. Pressing the arrow button for 2 seconds changes between modes 1 and 2.
How can I switch from a low light intensity stimulation to a high light intensity stimulation?
In modes 1 or 2 you can change between low and high stimulation by briefly pressing the on/off button. Ine mode 3 the light intensity may be varied between 7 levels by briefly pressing the "%" button to increase it or the "F" button to decrease it.
Is there a way to insert the disc into the device?
The side which shows the color numbers must be facing the practitioner. The number visible on the disc is the projected color.
What does BF and HF mean?
When you are in mode 2 - DB165 for laterality:
• BF is low frequency (3.79 Hz)
• HF is high frequency (8.74 Hz)
Is it possible to do a frequency or percentage scanning?
Yes. When you are in mode 1 you can activate the automatic scanning of the frequencies from A to G by pressing "F" for 2 seconds. To stop it press "F" briefly. For an automatic scan in 5% increments press "%" for 2 seconds. To stop it press "%" briefly.
What are the nozzles used for?
The nozzles are used to focus the light according to the size of the area you want to illuminate
• ~2 mm: use the auricular nozzle
• 5-10 cm: use the inox nozzle
• 10+ cm: do not use use a nozzle
How is the device shut off?
Press the on/off button for three seconds.
This is set-up mode where you select the detection light intensity. Press "F" or "%" to choose between 4 different intensity levels. To set your choice or switch to detection mode press the on/off button.
Why is the emitted light blinking?
This is how the fundamental Nogier frequencies (2.28, 4.56 Hz, etc..) appear to the eye. To apply the higher harmonic frequencies (292, 584 Hz, etc..) press "F" for 3 seconds; these frequencies will not appear to blink.
What is the battery life and charging time?
The supplied rechargeable battery lasts 3-5 hours on average, depending on the intensity and frequency selected and takes up to 3 hours for a full charge.
Why are two percentages showing on the keyboard?
The percentage variation is 5%. If two numbers are displayed it means that you are between them. For example, if 10% and 20% are displaying you are at 15%.
Can I use the device with my old Sedatelec filters?
Yes, all Sedatelec filters are compatible with the Premio 40.
Which are the different Premio 40 modes?
• Mode 1 GIR: Use the Nogier frequencies with -30% to +30% variations
• Mode 2 DB: Check laterality with BF (3.79 Hz) and HF (8.74 Hz) frequencies
• Mode 3 Continuous: Stimulate with continuous light from 780 to 51,500 Lux
White or colored light may be used in any mode with Sedatelec filters or discs.
How do you know which mode you are in and how do you switch between them?
Mode 1: One frequency and one percentage are displaying.
Mode 2: BF and/or HF are displaying.
Mode 3: G, L, and +30% are displaying.
A brief click of the arrow button changes between modes 1 and 3. Pressing the arrow button for 2 seconds changes between modes 1 and 2.
How can I switch from a low light intensity stimulation to a high light intensity stimulation?
In modes 1 or 2 you can change between low and high stimulation by briefly pressing the on/off button. Ine mode 3 the light intensity may be varied between 7 levels by briefly pressing the "%" button to increase it or the "F" button to decrease it.
Is there a way to insert the disc into the device?
The side which shows the color numbers must be facing the practitioner. The number visible on the disc is the projected color.
What does BF and HF mean?
When you are in mode 2 - DB165 for laterality:
• BF is low frequency (3.79 Hz)
• HF is high frequency (8.74 Hz)
Is it possible to do a frequency or percentage scanning?
Yes. When you are in mode 1 you can activate the automatic scanning of the frequencies from A to G by pressing "F" for 2 seconds. To stop it press "F" briefly. For an automatic scan in 5% increments press "%" for 2 seconds. To stop it press "%" briefly.
What are the nozzles used for?
The nozzles are used to focus the light according to the size of the area you want to illuminate
• ~2 mm: use the auricular nozzle
• 5-10 cm: use the inox nozzle
• 10+ cm: do not use use a nozzle
How is the device shut off?
Press the on/off button for three seconds.
Sedatelec, is a public limited companies (SAS) with a capital of 160 000 euros specialized in the design and distribution of medical equipment.
Located in France, near Lyon, it employs 20 people and exports about 80% of its production, in more than 40 countries, in Europe and the rest of the world.
Founded in 1978, Sedatelec worked with Doctor Paul Nogier, the father of Auriculotherapy and developed the first sterile semi-permanent ear needle, the ASP®.
It also created the first electronic devices and lasers for doctors carrying out this new medical technique.
As a result of the development and diffusion of Auriculotherapy then Auriculomedicine, the second technique developed by Dr. Nogier, the activity of Sedatelec has developed and is continuing to extend throughout the world. Thereafter, it expanded its market to acupuncture and progressively to other forms of alternative medicine (Reflexology, Photonotherapy®, Etiomedicine, etc..).
Dr. Paul Nogier (1908-1996), a neurophysiologist fascinated by acupuncture, homeopathy and psychology, demonstrated in the beginnings of the 1950s, that certain points on the external ear corresponded to organs or systems and that their distribution corresponded to the image of an inverted foetus. This representation, now recognized world-wide, is the basis for the practice of Auriculotherapy.
Sedatelec is dedicated to complying with the most up-to-date regulations governing health products, and always takes the greatest care when it comes to product safety and quality.
Located in France, near Lyon, it employs 20 people and exports about 80% of its production, in more than 40 countries, in Europe and the rest of the world.
Founded in 1978, Sedatelec worked with Doctor Paul Nogier, the father of Auriculotherapy and developed the first sterile semi-permanent ear needle, the ASP®.
It also created the first electronic devices and lasers for doctors carrying out this new medical technique.
As a result of the development and diffusion of Auriculotherapy then Auriculomedicine, the second technique developed by Dr. Nogier, the activity of Sedatelec has developed and is continuing to extend throughout the world. Thereafter, it expanded its market to acupuncture and progressively to other forms of alternative medicine (Reflexology, Photonotherapy®, Etiomedicine, etc..).
Dr. Paul Nogier (1908-1996), a neurophysiologist fascinated by acupuncture, homeopathy and psychology, demonstrated in the beginnings of the 1950s, that certain points on the external ear corresponded to organs or systems and that their distribution corresponded to the image of an inverted foetus. This representation, now recognized world-wide, is the basis for the practice of Auriculotherapy.
Sedatelec is dedicated to complying with the most up-to-date regulations governing health products, and always takes the greatest care when it comes to product safety and quality.
